Wine heaters

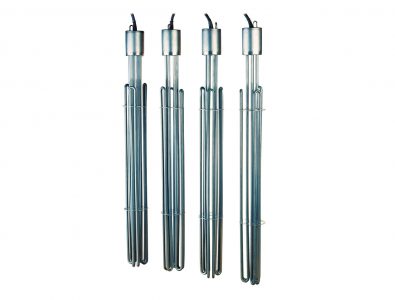

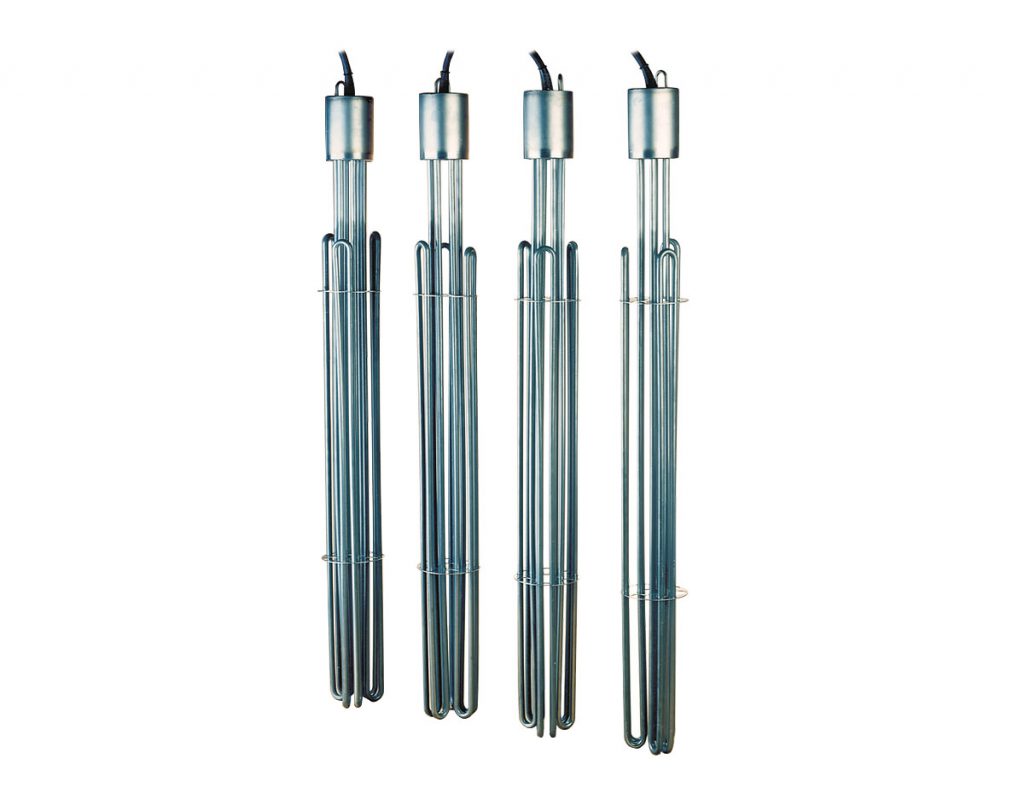

Immersion heaters in AISI 316L for winemaking

FI immersion heaters have been designed for heating liquids and, in wine-making, to facilitate the process of grape juice fermentation.

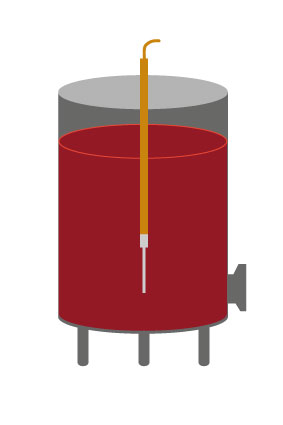

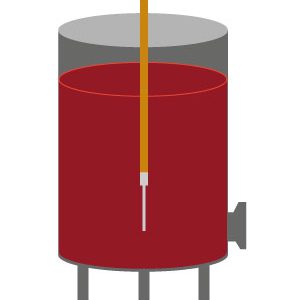

Entirely manufactured in AISI 316L stainless steel and completely watertight for their total immersion in fermentation tanks.

All materials used in their manufacturing are suitable to be used in the food industry. On request, special models can be supplied for specific temperatures and uses.

The FI heaters are shielded electric heating elements. Available in construction Class I (main insulation requiring earth plug) and in construction Class II (double insulation or reinforced insulation).

CETAL offers the possibility of personalizing the element, for exemple the size, power and suitable attachments according to specifications.

General characteristics

  • AISI 316L Ø10mm stainless steel pipe
  • Connection box, separators and connection ring in AISI 316L stainless steel
  • Unit surface finish: Electro polished
  • Watertight connections box, with IP-67 damp protection rating
  • Hose connection lead of 4 wires (3-phases + earth) of 2.5 mm² section and 10,000 mm long
  • Non-toxic blue outer covering of the hose lead suitable for food applications
  • Grey polyamide PG16 stuffing box
  • Class I electric element

Model

Length

Pass through
Ø max

Volts

Watts

W/cm²

FI4,5

750

Ø110

3~400V

4500

1.8

FI6

900

Ø110

3~400V

6000

2

FI9

750

Ø150

3~400V

9000

1.8
