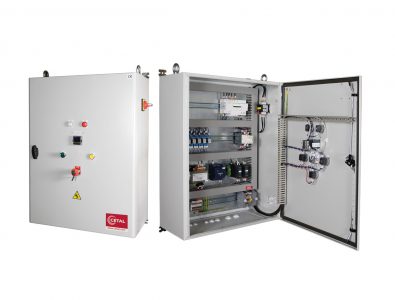

Turn-key power control panels

CETAL power control panels are designed for industrial heating applications

Reference

Max. rated power (KW)

Dimensions (mm)

Weight

Height

Width

Depth

(Kg)

ARS 004

3,5

400

300

200

10

ARS 008

8

400

300

200

10

ARS 013

13

400

300

200

12

ARS 023

23

500

300

200

18

ARS 035

35

600

500

250

35

ARS 047

47

600

500

250

40

ARS 064

64

600

500

250

45

ARS 085

85

800

600

250

50

Reference

Max. rated power (KW)

Dimensions (mm)

Weight

Height

Width

Depth

(Kg)

ARC 004

3.5

600

500

200

25

ARC 008

8.00

600

500

200

35

ARC 013

13.00

600

500

200

35

ARC 023

23.00

600

500

200

38

ARC 035

35.00

600

500

250

38

ARC 047

47.00

600

500

250

42

ARC 064

64.00

600

500

250

55

ARC 085

85.00

800

600

250

55

Reference

Max. rated power (KW)

Dimensions (mm)

Weight

Height

Width

Depth

(Kg)

ART 004

3.5

600

500

200

25

ART 008

8.00

600

500

200

35

ART 013

13.00

600

500

250

35

ART 023

23.00

600

500

250

38

ART 035

35.00

600

600

300

38

ART 047

47.00

600

600

300

42

ART 064

64.00

1000

600

300

75

ART 085

85.00

1000

600

400

90

For all models

  • Projecting roof or eyelet for handling

For ARC and ART model

  • External safety loop on terminals
  • Electronic thermostat security controller
  • 2-wire RS485 com link on PID controller

For power control panels connected to ATEX heaters

  • 30 mA circuit breaker
