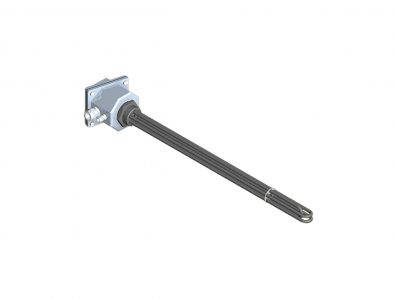

Screw plug immersion heaters titanium

Highly resistant to chemicals and corrosion, titanium immersion heaters are the right choice for many critical applications

The titanium tube and screw-cap TH electrical resistors range is used to heat all kinds of water, of whatever source and treatment, e.g. :

  • seawater
  • chlorine treatment
  • bromine
  • ozone
  • electrophysical
  • electrochemical
  • chlorine-free products.

General characteristics

  • Ø8 mm tubular elements in titanium
  • Electrocasted and roll-compressed magnesium-oxide insulated resistor.
  • 1” 1/2-thread Gas titanium screw heads
  • Aluminium terminal box with damp protection grade IP-66
  • With titanium casing of Ø9.5 x 0.5 mm for temperature sensors.
  • Welds with titanium filler metal
  • Standard voltage 3~230 V Δ, 3~400 V
  • On request, resistors can be manufactured according to your specifications

Code

L in mm

BSP
Threaded plug

Watts

W/cm²

Tube
material

Weight
in Kg

Connection box range

Thermostat
range

WITHOUT
thermostat

WITH
thermostat

TH005

255

1” 1/2

3000

9.7

Titanium Ø8

0.6

Range D

Range P2

EG

TH010

255

1” 1/2

4500

14.5

Titanium Ø8

0.6

Range D

Range P2

EG

TH015

255

1” 1/2

6000

19.4

Titanium Ø8

0.6

Range D

Range P2

EG

(Minimum Temperature -40°C ; Max temperature under regular use 150°C, maximum temperature under peak 170°C)

Connection box range

P2 range

Connection box range

Code

Characteristics

Triphase thermostat

Weight in kg

P2

128088006

• For M45 and 1”1/2
• Maximum power: 10 KW
• M25 Packing gland

EG range

0.95

D range

Connection box range

Code

Characteristics

Weight in kg

D

108050997

• For M45 and 1”1/2
• M20 Packing gland

0.35

Thermostat range

Code

Thermostat range

Range

Characteristics

Maximum intensity
(~240 V)

Weight in kg

517370000

EG

1/40°C

Bulb in copper Ø6×215 mm
Capilary 880 mm

16A

0.19

517370001

Button 0/40°C

0.02

517371000

EG

28/85°C

Bulb in copper Ø6×129 mm
Capilary 880 mm

16A

0.19

517371001

Button 30/85°C

0.02

517372000

EG

36/125°C

Bulb in copper Ø6×138 mm
Capilary 880 mm

16A

0.19

517372001

Button 30/120°C

0.02

517373000

EG

60/200°C

Bulb in S. Steel Ø6×142 mm
Capilary 880 mm

16A

0.19

517373001

Button 60/200°C

0.02

517374000

EG

50/300°C

Bulb in S. Steel Ø6×77 mm
Capilary 880 mm

16A

0.19

517374001

Button 50/300°C

0.02
