Ribbed heating elements

CETAL offers a large range of standard fin heaters with rectangular or round fins

Rectangular fins range

Ref.

Immersion length (mm)

Power (W)

Weight (kg)

A-R8-02

140

200

0.25

A-R8-05

250

500

0.45

A-R8-07

350

750

0.6

A-R8-10

450

1000

0.75

A-R8-15

650

1500

1.05

A-R8-20

850

2000

1.35

Ref.

Immersion length (mm)

Power (W)

Weight (kg)

A-R10-05

225

500

0.4

A-R10-07

325

750

0.55

A-R10-10

425

1000

0.77

A-R10-15

620

1500

1.

A-R10-20

810

2000

1.35

A-R10-30

1305

3000

2.1

Ref.

Immersion length (mm)

Power (W)

Weight (kg)

A-R16-10

290

1000

1.1

A-R16-12

340

1250

1.3

A-R16-15

390

1500

1.5

A-R16-17

440

1750

1.7

A-R16-20

490

2000

1.85

A-R16-25

590

2500

2.25

A-R16-30

690

3000

2.65

A-R16-35

790

3500

3.05

A-R16-40

890

4000

3.4

A-R16-45

990

4500

3.75

A-R16-50

1090

5000

4.2

A-R16-60

1290

6000

5.25

A-R16-80

1690

8000*

6.3

(*) 400 V

  • SEAR8 / SEAR 10
  • JSAR8/JSAR10
  • ORPMA
  • SEAR16
  • JSAR16
  • ORGMA

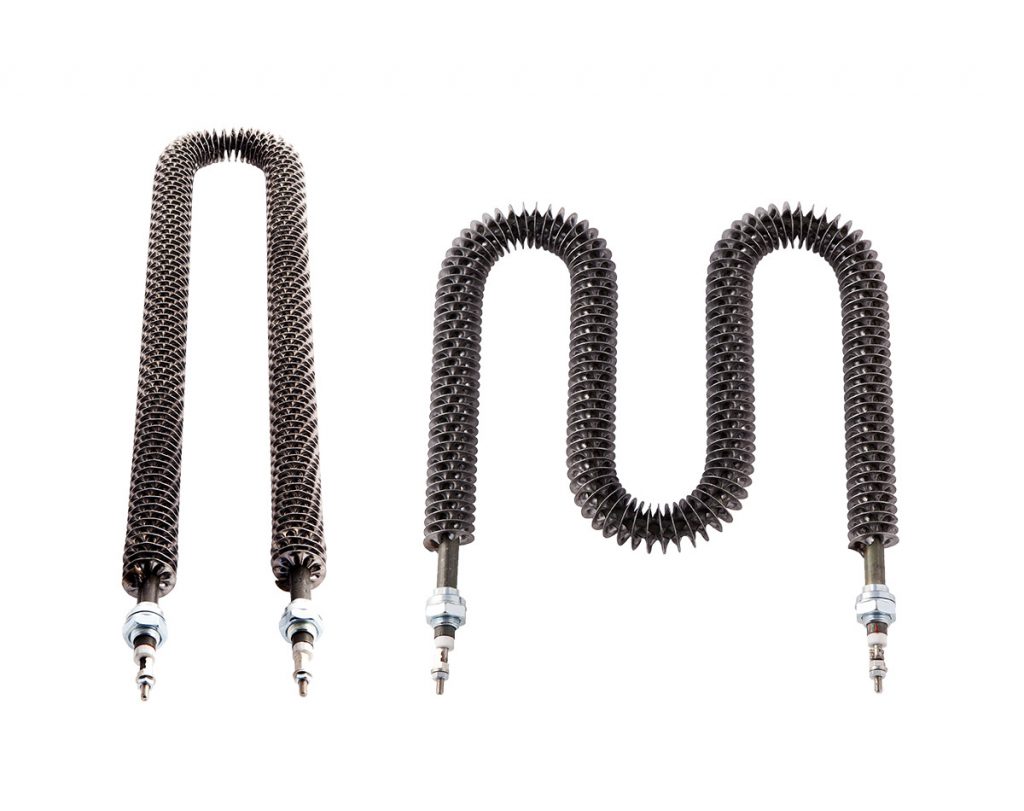

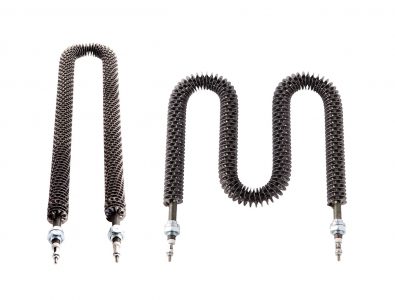

Round fins range

Ref.

Length
L

Active zone
A

Power (W)

W/cm²

Weight
(kg)

AHA1000

470

410

1000

8.1

0.28

AHA2000

900

840

2000

7.7

0.53

AHA3000

1320

1260

3000

7.7

0.78

AHA4000

1750

1690

4000

7.6

1.03

AHA5000

2180

2120

5000

7.6

1.29

AHA6000

2600

2540

6000

7.6

1.54

(Minimum temperature -40°C ; maximum temperature under regular use 200°C ; maximum temperature under peak 250°C)

Ref.

Length
L

Active zone
A

Power (W)

W/cm²

Weight
(kg)

AHB1000

230

200

1000

8.1

0.28

AHB2000

445

415

2000

7.7

0.53

AHB3000

655

625

3000

7.7

0.78

AHB4000

870

840

4000

7.6

1.03

AHB5000

1085

1055

5000

7.6

1.29

AHB6000

1295

1265

6000

7.6

1.54

(Minimum temperature -40°C ; maximum temperature under regular use 200°C ; maximum temperature under peak 250°C)

Ref.

Length
L

Active zone
A

Power (W)

W/cm²

Weight
(kg)

AHC2000

232

202

2000

7.7

0.53

AHC3000

337

307

3000

7.7

0.78

AHC4000

445

415

4000

7.6

1.03

AHC5000

552

522

5000

7.6

1.29

AHC6000

657

627

6000

7.6

1.54

(Minimum temperature -40°C ; maximum temperature under regular use 200°C ; maximum temperature under peak 250°C)
