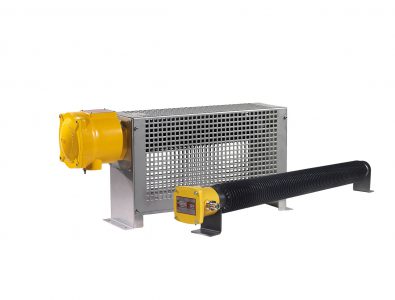

Industrial convectors ATEX

Industrial convectors for use in hazardous areas

The ATEX/IECEx industrial convectors by CETAL are designed in a particularly robust way for space heating in hazardous areas.

Reference

Power
(W)

ATEX

temp.

class

Connection
box

Chassis

Option
Thermo­stat

Overall
length
L (mm)

Width
W
(mm)

Height
H
(mm)

Weight

(kg)

RAE d 230 V standard

RAE05T3-M230-d-G

500

T3

Painted
aluminium

Galvanized
steel

585

180

365

15

RAE07T3-M230-d-G

750

T3

675

180

365

17

RAE10T3-M230-d-G

1000

T3

780

180

365

19

RAE15T3-M230-d-G

1500

T3

960

180

365

23

RAE20T3-M230-d-G

2000

T3

1155

180

365

25

RAE30T3-M230-d-G

3000

T3

1530

180

365

29

RAE05T4-M230-d-G

500

T4

780

180

365

19

RAE10T4-M230-d-G

1000

T4

1155

180

365

25

RAE15T4-M230-d-G

1500

T4

1530

180

365

29

RAE d 230 V standard + thermostat

RAE05T3-M230-d-G-T

500

T3

Painted
aluminium

Galvanized
steel

Thermostat
0/38 °C 1PH

585

180

365

15

RAE07T3-M230-d-G-T

750

T3

675

180

365

17

RAE10T3-M230-d-G-T

1000

T3

780

180

365

19

RAE15T3-M230-d-G-T

1500

T3

960

180

365

23

RAE20T3-M230-d-G-T

2000

T3

1155

180

365

25

RAE30T3-M230-d-G-T

3000

T3

1530

180

365

29

RAE05T4-M230-d-G-T

500

T4

780

180

365

19

RAE10T4-M230-d-G-T

1000

T4

1155

180

365

25

RAE15T4-M230-d-G-T

1500

T4

1530

180

365

29

RAE d 230 V stainless steel + thermostat

RAE05T3-M230-d-S-T

500

T3

Painted
aluminium

Stainless
steel

Thermostat
0/38 °C 1PH

585

180

365

15

RAE07T3-M230-d-S-T

750

T3

675

180

365

17

RAE10T3-M230-d-S-T

1000

T3

780

180

365

19

RAE15T3-M230-d-S-T

1500

T3

960

180

365

23

RAE20T3-M230-d-S-T

2000

T3

1155

180

365

25

RAE30T3-M230-d-S-T

3000

T3

1530

180

365

29

RAE05T4-M230-d-S-T

500

T4

780

180

365

19

RAE10T4-M230-d-S-T

1000

T4

1155

180

365

25

RAE15T4-M230-d-S-T

1500

T4

1530

180

365

29

RAE d 230 V stainless steel

RAE05T3-M230-d-S

500

T3

Painted
aluminium

Stainless
steel

585

180

365

15

RAE07T3-M230-d-S

750

T3

675

180

365

17

RAE10T3-M230-d-S

1000

T3

780

180

365

19

RAE15T3-M230-d-S

1500

T3

960

180

365

23

RAE20T3-M230-d-S

2000

T3

1155

180

365

25

RAE30T3-M230-d-S

3000

T3

1530

180

365

29

RAE05T4-M230-d-S

500

T4

780

180

365

19

RAE10T4-M230-d-S

1000

T4

1155

180

365

25

RAE15T4-M230-d-S

1500

T4

1530

180

365

29

Reference

Power
(W)

ATEX

temp.

class

Connection
box

Chassis

Option
Thermo­stat

Overall
length
(mm)

Width
W
(mm)

Height
H
(mm)

Weight

(kg)

RAE d 400 V standard

RAE10T3-T400-d-G

1000

T3

Painted
aluminium

Galvanized steel

780

180

365

19

RAE15T3-T400-d-G

1500

T3

960

180

365

23

RAE20T3-T400-d-G

2000

T3

1155

180

365

25

RAE30T3-T400-d-G

3000

T3

1530

180

365

29

RAE10T4-T400-d-G

1000

T4

1155

180

365

25

RAE15T4-T400-d-G

1500

T4

1530

180

365

29

RAE d 400 V standard + thermostat

RAE10T3-T400-d-G-T

1000

T3

Painted
aluminium

Galvanized steel

Thermostat
0/40 °C 3PH

780

180

365

19

RAE15T3-T400-d-G-T

1500

T3

960

180

365

23

RAE20T3-T400-d-G-T

2000

T3

1155

180

365

25

RAE30T3-T400-d-G-T

3000

T3

1530

180

365

29

RAE10T4-T400-d-G-T

1000

T4

1155

180

365

25

RAE15T4-T400-d-G-T

1500

T4

1530

180

365

29

RAE d 400 V stainless steel + thermostat

RAE10T3-T400-d-S-T

1000

T3

Painted
aluminium

Stainless steel

Thermostat
0/40 °C 3PH

780

180

365

19

RAE15T3-T400-d-S-T

1500

T3

960

180

365

23

RAE20T3-T400-d-S-T

2000

T3

1155

180

365

25

RAE30T3-T400-d-S-T

3000

T3

1530

180

365

29

RAE10T4-T400-d-S-T

1000

T4

1155

180

365

25

RAE15T4-T400-d-S-T

1500

T4

1530

180

365

29

RAE d 400 V stainless steel

RAE10T3-T400-d-S

1000

T3

Painted
aluminium

Stainless steel

780

180

365

19

RAE15T3-T400-d-S

1500

T3

960

180

365

23

RAE20T3-T400-d-S

2000

T3

1155

180

365

25

RAE30T3-T400-d-S

3000

T3

1530

180

365

29

RAE10T4-T400-d-S

1000

T4

1155

180

365

25

RAE15T4-T400-d-S

1500

T4

1530

180

365

29

Accessories

  • Wall mounting kit

Reference

Power
(W)

ATEX

temp.

class

Connection
box

Chassis

Option
Thermo­stat

Overall
length
(mm)

Width
W
(mm)

Height
H
(mm)

Weight

(kg)

RAE e 230 V standard

RAE05T3-M230-e-G

500

T3

Round,
painted
steel

Galvanized
steel

615

210

382

15

RAE07T3-M230-e-G

750

T3

705

210

382

17

RAE10T3-M230-e-G

1000

T3

810

210

382

19

RAE15T3-M230-e-G

1500

T3

990

210

382

23

RAE20T3-M230-e-G

2000

T3

1185

210

382

25

RAE30T3-M230-e-G

3000

T3

1560

210

382

29

RAE05T4-M230-e-G

500

T4

810

210

382

19

RAE10T4-M230-e-G

1000

T4

1185

210

382

25

RAE15T4-M230-e-G

1500

T4

1560

210

382

29

RAE e 230 V standard + thermostat

RAE05T3-M230-e-G-T

500

T3

Square,
stainless steel

Galvanized
steel

Thermostat
-20/+50 °C 1PH

545

180

342

15

RAE07T3-M230-e-G-T

750

T3

635

180

342

17

RAE10T3-M230-e-G-T

1000

T3

740

180

342

19

RAE15T3-M230-e-G-T

1500

T3

920

180

342

23

RAE20T3-M230-e-G-T

2000

T3

1115

180

342

25

RAE30T3-M230-e-G-T

3000

T3

1490

180

342

29

RAE05T4-M230-e-G-T

500

T4

740

180

342

15

RAE10T4-M230-e-G-T

1000

T4

1115

180

342

19

RAE15T4-M230-e-G-T

1500

T4

1490

180

342

23

RAE e 230 V stainless steel + thermostat

RAE05T3-M230-e-S-T

500

T3

Square,
stainless steel

Stainless
steel

Thermostat
-20/+50 °C 1PH

545

180

342

15

RAE07T3-M230-e-S-T

750

T3

635

180

342

17

RAE10T3-M230-e-S-T

1000

T3

740

180

342

19

RAE15T3-M230-e-S-T

1500

T3

920

180

342

23

RAE20T3-M230-e-S-T

2000

T3

1115

180

342

25

RAE30T3-M230-e-S-T

3000

T3

1490

180

342

29

RAE05T4-M230-e-S-T

500

T4

740

180

342

15

RAE10T4-M230-e-S-T

1000

T4

1115

180

342

19

RAE15T4-M230-e-S-T

1500

T4

1490

180

342

23

RAE e 230 V stainless steel

RAE05T3-M230-e-S

500

T3

Round,
painted
steel

Stainless
steel

615

210

382

15

RAE07T3-M230-e-S

750

T3

705

210

382

17

RAE10T3-M230-e-S

1000

T3

810

210

382

19

RAE15T3-M230-e-S

1500

T3

990

210

382

23

RAE20T3-M230-e-S

2000

T3

1185

210

382

25

RAE30T3-M230-e-S

3000

T3

1560

210

382

29

RAE05T4-M230-e-S

500

T4

810

210

382

19

RAE10T4-M230-e-S

1000

T4

1185

210

382

25

RAE15T4-M230-e-S

1500

T4

1560

210

382

29

Reference

Power
(W)

ATEX
temp.
class

Connection
box

Chassis

Option
Thermo­stat

Overall
length
(mm)

Width
W
(mm)

Height
H
(mm)

Weight
(kg)

RAE e 400 V standard

RAE10T3-T400-e-G

1000

T3

Round,
painted
steel

Galvanized steel

810

210

382

19

RAE15T3-T400-e-G

1500

T3

990

210

382

23

RAE20T3-T400-e-G

2000

T3

1185

210

382

25

RAE30T3-T400-e-G

3000

T3

1560

210

382

29

RAE10T4-T400-e-G

1000

T4

1185

210

382

25

RAE15T4-T400-e-G

1500

T4

1560

210

382

29

RAE e 400 V inox

RAE10T3-T400-e-S

1000

T3

Round,
painted
steel

Stainless steel

810

210

382

19

RAE15T3-T400-e-S

1500

T3

990

210

382

23

RAE20T3-T400-e-S

2000

T3

1185

210

382

25

RAE30T3-T400-e-S

3000

T3

1560

210

382

29

RAE10T4-T400-e-S

1000

T4

1185

210

382

25

RAE15T4-T400-e-S

1500

T4

1560

210

382

29

Reference

Power
(W)

Supply

voltage

(V)

Cou-

pling

ATEX

temp.

class

ATEX/IECEx

type of

protection

Number

of heating

elements

Overall
length
(mm)

Weight

(kg)

RBAE Series T3

RBAE 05 T3

500

230

1PH*

T3

Ex d

1

825

15

RBAE 10 T3

1000

230

1PH*

T3

Ex d

1

1275

19

RBAE 16 T3

1600

230

1PH*

T3

Ex d

1

1875

23

RBAE 20 T3

2000

230

1PH*

T3

Ex d

1

2125

25

RBAE Series T4

RBAE 05 T4

500

230

1PH*

T3

Ex d

1

1290

14

RBAE 10 T4

1000

230

1PH*

T3

Ex d

1

2230

18

RBAE 15 T4

1500

230

1PH*

T3

Ex d

1

3390

23

(*) 3PH on demand, 400/440 V on demand

Accessories

  • Wall mounting kit
