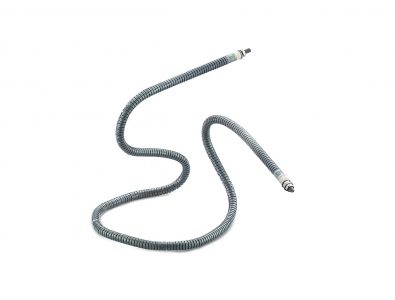

Flexible tubular heater Hotflex

Bend your heating element yourself without tools!

The flexible tubular heater Hotflex is a flexible resistance which can be formed by hand in 3 dimensions, thus allowing a wide range of applications.

Easiest handling, simple assembly, optimal thermal features and the simple storage (the hotflex is supplied in straight condition) are outstanding product arguments.

This product is an excellent alternative to classic tubular heating elements, cast-in heating elements or cartridges.

Advantages

  • Easy installation with a uniform finish
  • Can be formed by hand
  • Stored in a straight condition to save storage space
  • No special installation tools required
  • Patented technology ensures industry leading heat transfer
  • Up to 75% sheath contact with round and square hotflex heaters when recommended groove geometry is followed
  • Rapid heat-up times
  • Minimal temperature difference between heater sheath and heated tool
  • 3-dimensional groove geometry possible
  • Industry’s smallest bending radius
  • Hotflex’s flexibility enables heat to be located where it is needed; an improvement over rigid cartridge heaters
  • Reduced energy costs: tool mass can be reduced

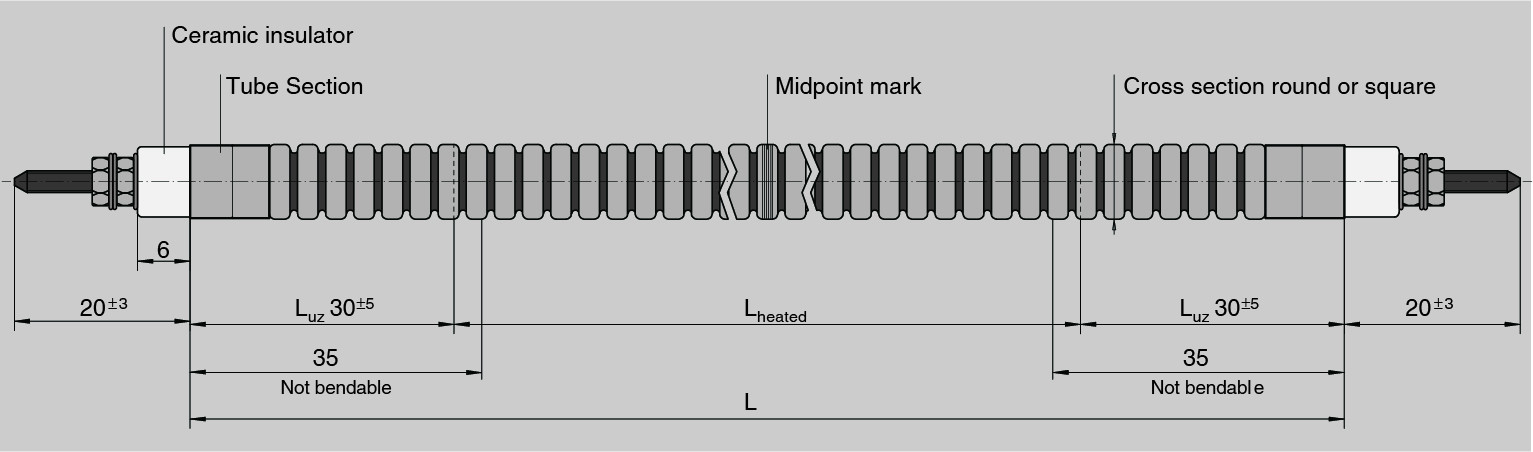

Depending on the number of bends the hotflex length can increase.

Type Hotflex

L min [mm]

L max [mm]

Tube section max [mm]

Min bending radius internal

Max. sheath surface load [W/cm²]

Max. wattage [W] at 230 V

Ø 6.5

300

1800

24

6.5

10

2190

Ø 8.0

300

2600

10

10

15

5200

Ø 8.5

300

2600

10

10

15

5200

Stock ID

L [mm]

P [W]

6500300

300

350

6500350

350

400

6500400

400

500

6500450

450

600

6500500

500

650

6500550

550

700

6500600

600

800

6500650

650

850

6500700

700

900

6500750

750

1000

6500800

800

1100

6500850

850

1200

6500900

900

1300

6500950

950

1350

6501000

1000

1400

6501050

1050

1450

6501100

1100

1500

6501150

1150

1550

6501200

1200

1600

6501250

1250

1650

6501300

1300

1700

6501350

1350

1800

6501400

1400

1900

6501450

1450

2000

6501500

1500

2100

*with connection voltage 230 V wattage will decrease by 8 %.

Stock ID

L [mm]

P [W]

6300400

400

795

6300425

425

850

6300450

450

910

6300475

475

970

6300500

500

1025

6300525

525

1090

6300550

550

1145

6300575

575

1200

6300600

600

1260

6300625

625

1320

6300650

650

1380

6300675

675

1440

6300700

700

1495

6300725

725

1550

6300750

750

1615

6300775

775

1670

6300800

800

1730

6300825

825

1790

6300850

850

1845

6300875

875

1900

6300900

900

1960

6300925

925

2020

6300950

950

2080

6300975

975

2140

6301000

1000

2195

6301025

1025

2260

6301050

1050

2316

6301075

1075

2370

6301100

1100

2430

6301125

1125

2480

6301150

1150

2545

6301175

1175

2600

6301200

1200

2665

6301225

1225

2730

6301250

1250

2780

6301275

1275

2840

6301300

1300

2895

6301325

1325

2960

6301350

1350

3015

6301375

1375

3070

6301400

1400

3130

6301425

1425

3180

6301450

1450

3245

6301475

1475

3300

6301500

1500

3365

6301525

1525

3420

6301550

1550

3480

6301575

1575

3530

6301600

1600

3600

Stock ID

L [mm]

P [W]

6100300

300

650

6100350

350

750

6100375

375

825

6100400

400

900

6100425

425

975

6100450

450

1050

6100475

475

1100

6100500

500

1150

6100525

525

1225

6100550

550

1300

6100575

575

1375

6100600

600

1450

6100625

625

1525

6100650

650

1600

6100675

675

1675

6100700

700

1750

6100725

725

1825

6100750

750

1900

6100775

775

1975

6100800

800

2050

6100825

825

2125

6100850

850

2200

6100875

875

2275

6100900

900

2350

6100925

925

2425

6100950

950

2500

6100975

975

2575

6101000

1000

2650

6101025

1025

2725

6101050

1050

2800

6101075

1075

2865

6101100

1100

2930

6101150

1150

3060

6101200

1200

3190

6101250

1250

3320

6101300

1300

3450

6101350

1350

3580

6101400

1400

3710

6101450

1450

3840

6101500

1500

3970

Stock ID

L [mm]

P [W]

6110500

500

700

6110550

550

780

6110600

600

860

6110650

650

950

6110700

700

1000

6110750

750

1100

6110800

800

1190

6110850

850

1250

6110900

900

1350

6110950

950

1430

6111000

1000

1500

6111050

1050

1590

6111100

1100

1650

6111150

1150

1750

6111200

1200

1830

6111250

1250

1900

6111300

1300

1990

6111350

1350

2070

6111400

1400

2150

6111450

1450

2230

6111500

1500

2300
