Duct heaters

CETAL offers a large range of standard duct heaters

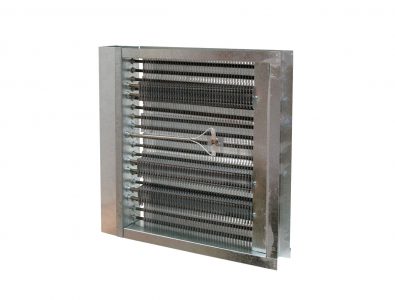

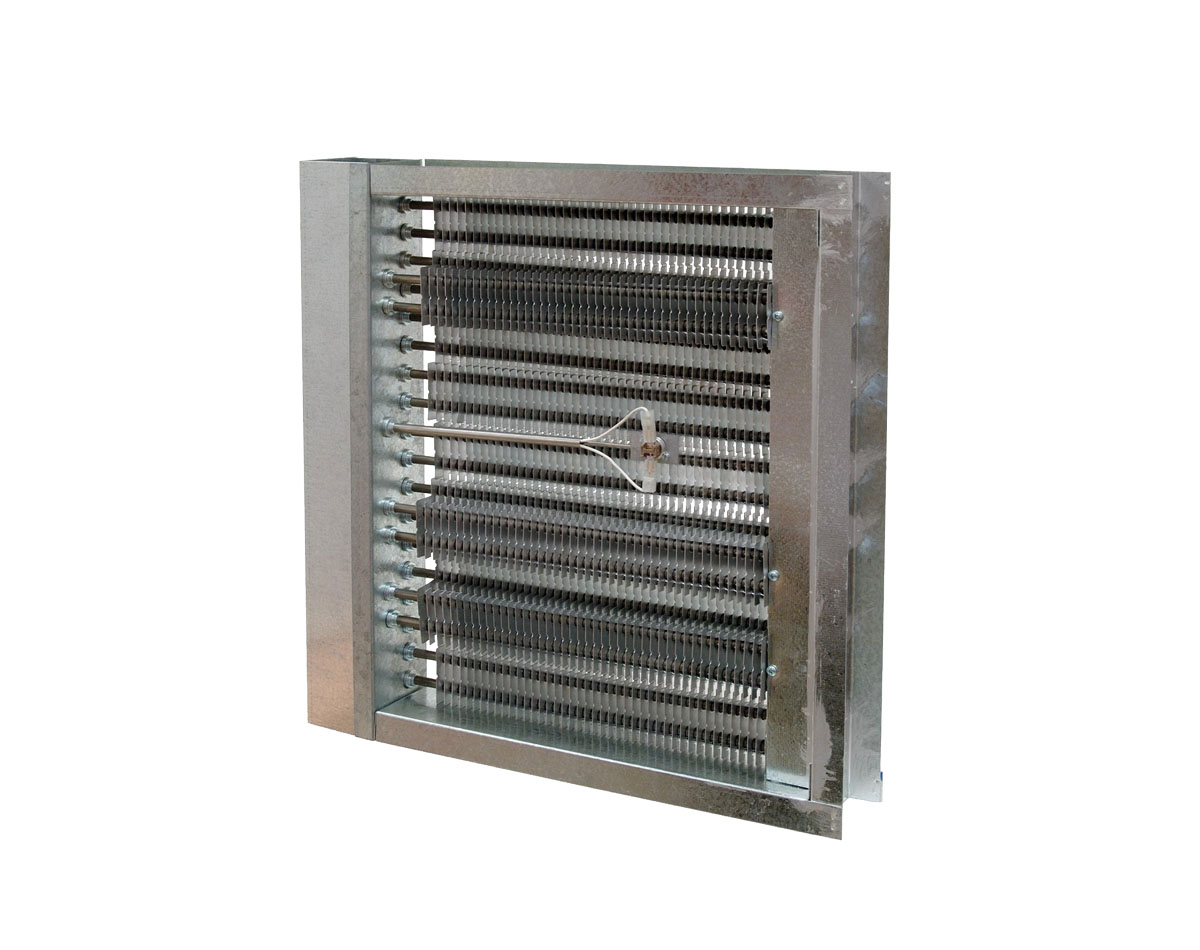

Ref.

Dimensions (mm)

Power
(W)

Number of elements

A

B

C

D

E

DHS3

200

400

50

75

25

3000

3

DHS3-2

450

400

50

75

25

3000

3

DHS4_5

200

500

50

75

25

4500

3

DHS6

200

400

75

75

25

6000

6

DHS6-2

450

400

75

75

25

6000

6

DHS9

450

400

75

75

25

9000

9

DHS9-2

200

500

75

75

25

9000

6

DHS9-3

450

500

50

75

25

9000

6

DHS12

450

400

100

75

25

12000

12

DHS13_5

450

500

75

75

25

13500

9

DHS15

450

400

100

75

25

15000

15

DHS18

450

400

100

75

25

18000

18

DHS18-2

450

500

75

75

25

18000

12

DHS21

450

400

100

75

25

21000

21

DHS22_5

450

500

75

75

25

22500

15

DHS24

450

400

100

75

25

24000

24

DHS27

450

500

100

75

25

27000

18

Ref.

Description

517541075

Klixon 75 °C thermostat. Loose

1017000000

Klixon 75 °C thermostat. Mounted with tube and connector

EC10001

DHS framework with dimensions A x B = 500 x 250 mm

EC10002

DHS framework with dimensions A x B = 500 x 500 mm

EC10003

DHS framework with dimensions A x B = 600 x 250 mm

EC10004

DHS framework with dimensions A x B = 600 x 500 mm

EC10111

DHS support with dimensions A x B = 500 x 250 mm

EC10112

DHS support with dimensions A x B = 500 x 500 mm

EC10113

DHS support with dimensions A x B = 600 x 250 mm

EC10114

DHS support with dimensions A x B = 600 x 500 mm

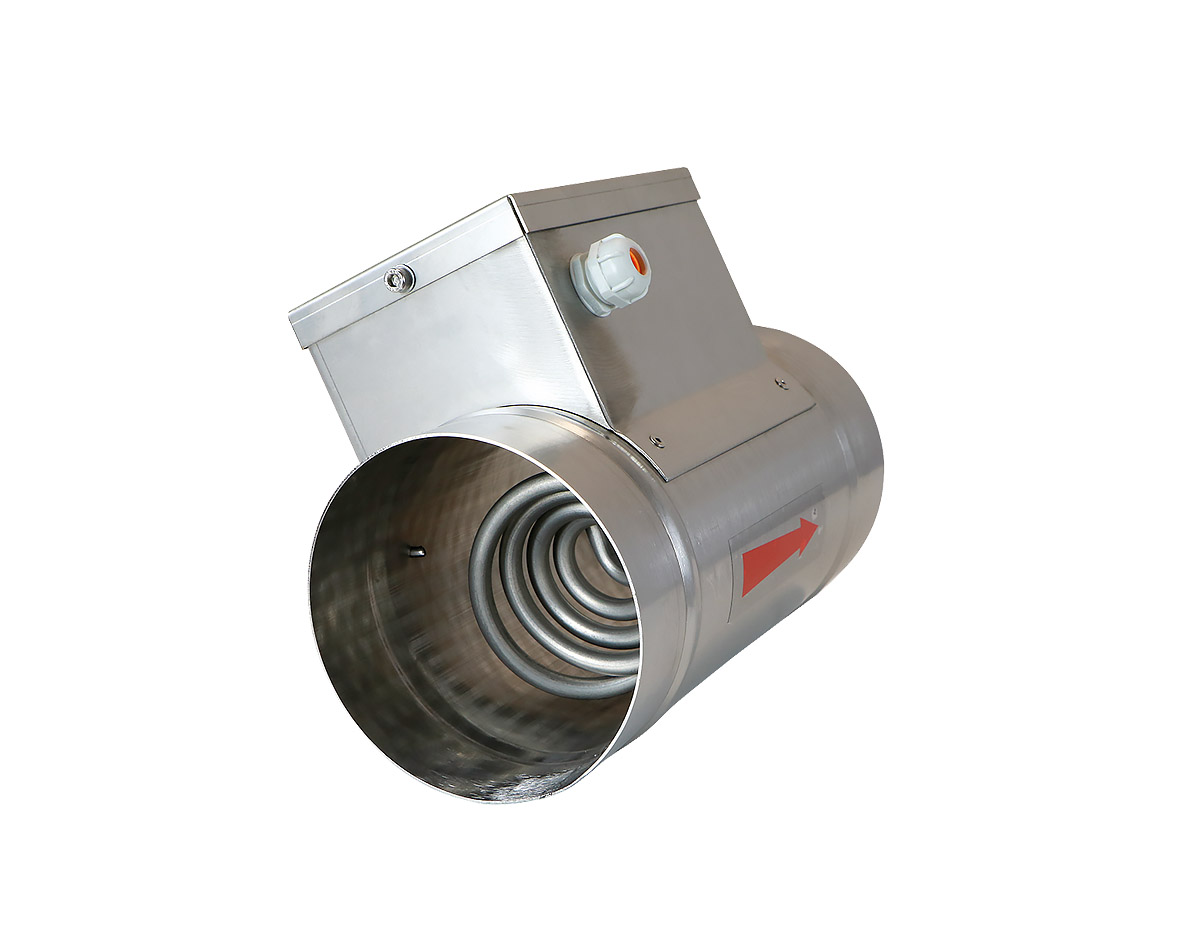

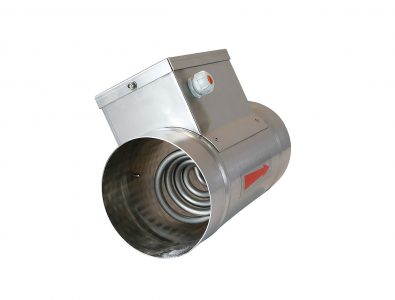

Ref.

DN

Power
(W)

Power unit

Weight (kg)

L (mm)

A (mm)

B (mm)

BTO-12-005

125

500

500

3

180

35

60

BTO-12-010

125

1000

1000

3.5

180

35

60

BTO-16-005

160

500

500

3.5

180

45

60

BTO-16-010

160

1000

1000

4

180

45

60

BTO-16-015

160

1500

500

4.5

180

45

60

BTO-20-005

200

500

500

5

180

45

60

BTO-20-010

200

1000

333

5.5

180

45

60

BTO-20-015

200

1500

500

6

180

45

60

BTO-20-020

200

2000

666

6.5

180

45

60

BTO-20-030

200

3000

1000

7

180

45

60

BTO-25-007

250

666

666

6.5

180

45

60

BTO-25-010

250

1000

333

7

180

45

60

BTO-25-015

250

1500

500

7.5

180

45

60

BTO-25-020

250

2000

666

8.5

180

45

60

BTO-25-030

250

3000

1000

8.5

180

45

60

BTO-25-045

250

4500

1500

9

180

45

60

BTO-31-010

316

1000

1000

10

180

55

60

BTO-31-015

316

1500

500

11

180

55

60

BTO-31-020

316

2000

666

11.5

180

55

60

BTO-31-030

316

3000

1000

12

180

55

60

BTO-31-045

316

4500

1500

13

180

55

60

BTO-31-060

316

6000

2000

14

180

55

60

BTO-35-020

350

2000

666

12

180

55

60

BTO-35-030

350

3000

1000

13

180

55

60

BTO-35-045

350

4500

1500

14

180

55

60

BTO-35-060

350

6000

2000

16

180

55

60

BTO-35-075

350

7500

2500

18

180

55

60

BTO-40-015

400

1500

1500

14

260

70

60

BTO-40-015

400

2000

666

15

260

70

60

BTO-40-015

400

3000

1000

15.5

260

70

60

BTO-40-015

400

4500

1500

16

260

70

60

BTO-40-015

400

6000

1000

18

260

70

60

BTO-40-015

400

9000

1500

20

260

70

60

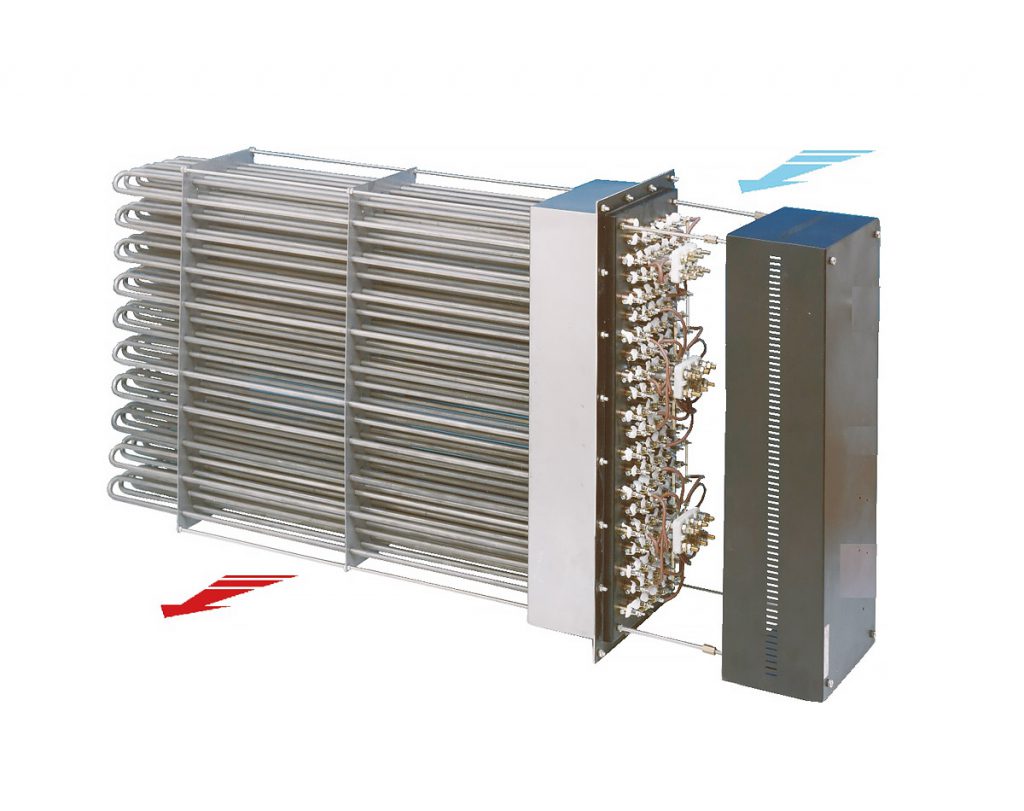

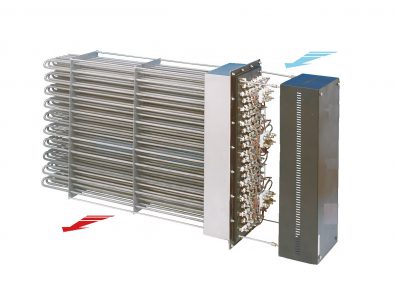

Ref.

Power (kW)

Nº elements

Nº stages

Dimensions (mm)

Weight
(kg)

A

B

C

L

DHC6

6

6

1 to 6 KW

90

118

162

440

6.3

DHC12

12

12

1 to 12 KW

150

178

222

440

9.8

DHC18

18

18

1 to 6 KW
1 to 12 KW

210

238

282

440

13.2

DHC24

24

24

2 to 12 KW

270

296

343

440

16.7

DHC30

30

30

1 to 6 KW
2 to 12 KW

330

352

404

440

20.1

DHC36

36

36

3 to 12 KW

390

416

464

440

23.6

DHC42

42

42

2 to 12 KW
1 to 18 KW

450

472

524

440

27

DHC48

48

48

1 to 12 KW
2 to 18 KW

510

532

584

440

30

DHC54

54

54

1 to 12 KW
1 to 18 KW
1 to 24 KW

570

592

644

440

33.9

DHC60

60

60

1 to 12 KW
2 to 24 KW

630

652

704

440

37.4

Ref.

Description

Dimensions (mm)

517380000

“K” type thermocouple aerial male connector and female bayonet connector

“K” Ø6 x 475
