Defrosting

For your standard defrosting applications

Straight elements adaptable for evaporators or tray defrosting, DEFA range

Straight annealed elements for evaporators, DEFB range

Flexible annealed copper heating elements for drain pipe defrosting, DEFC range

DEFA range

Code

Dimension A (mm)

Watts

W/cm²

Weight (Kg)

DEFA1

1000

350

1.6

0.25

DEFA1_25

1250

450

1.5

0.31

DEFA1_5

1500

525

1.6

0.37

DEFA1_75

1750

625

1.5

0.43

DEFA2

2000

700

1.5

0.5

DEFA2_25

2250

800

1.5

0.56

DEFA2_5

2500

875

1.5

0.62

DEFA2_75

2750

950

1.5

0.68

DEFA3

3000

1000

1.5

0.74

DEFA3_25

3250

1125

1.4

0.8

DEFA3_5

3500

1250

1.5

0.86

DEFA3_9E

3907

1675

1.77

0.96

DEFA4

4000

1400

1.5

0.98

DEFA4_5

4500

1600

1.5

1.1

DEFA5

5000

1750

1.4

1.2

DEFA5_5

5500

1900

1.4

1.3

DEFA6

6000

2100

1.4

1.5

DEFA6_5

6500

2300

1.4

1.6

(Minimum temperature -40°C; Maximum temperature under regular use 250°C, Maximum temperature under peak 280°C)

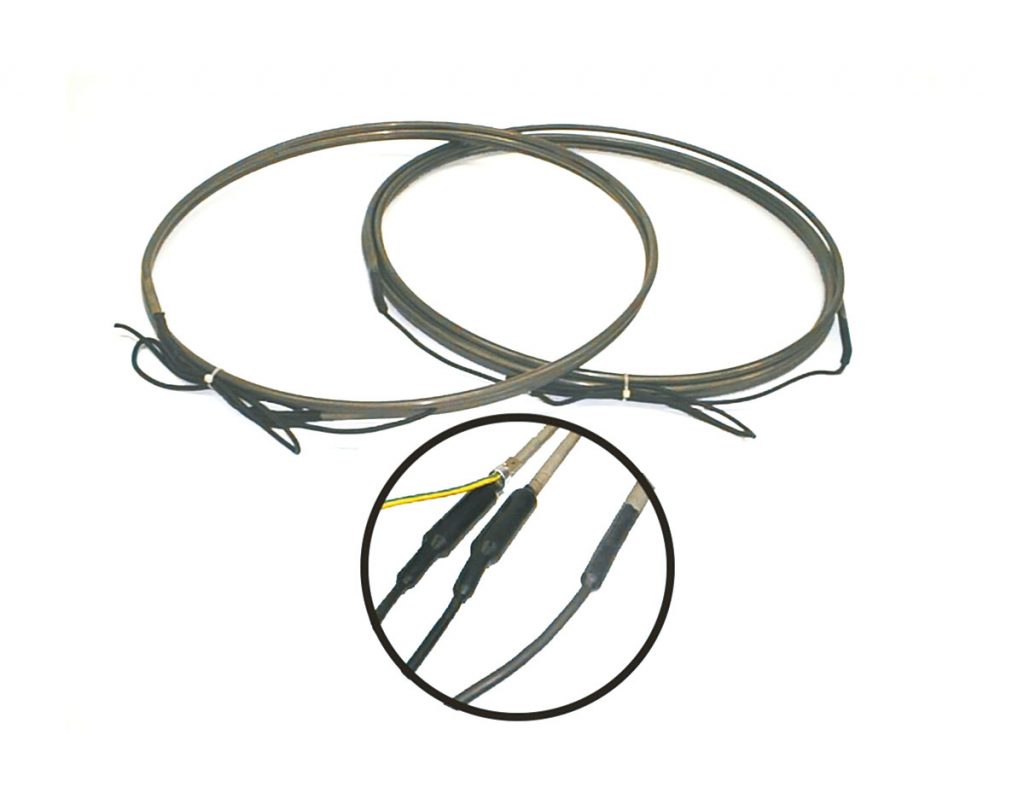

This product is supplied in rolls of 0.55 m in diameter to simplify transport, except for models DEFA1, DEFA1_25, DEFA1_5, DEFA1_75 and DEFA3_9E.

DEFB range

Code

Watts

W/cm²

Tube

Shape

Dimensions (mm)

Weight
(Kg)

L

B

DEFB1_67U

1675

1.77

AISI321

U (Fig. 5A)

1

1929

1.14

DEFB1_8U

1800

1.65

AISI321

U (Fig. 5A)

1

2224

1.31

DEFB0_7RAC

700

1.1

AISI321

Straight with elbowed ends
(Fig. 5B)

2

2338

174

0.79

DEFB1_05RAC

1050

1.1

AISI321

2

3588

174

1.16

DEFB1_67RAC

1675

1.77

AISI321

2

3588

174

1.16

DEFB0_5UAC

500

1.77

Incoloy®-825

U elbowed
(Fig. 6)

3

498

144

0.38

DEFB0_7UAC

700

1.1

AISI321

U elbowed
(Fig. 6)

3

1155

174

0.78

DEFB1_05UAC

1050

1.1

AISI321

U elbowed
(Fig. 6)

3

1780

174

1.15

DEFB1_67UAC

1675

1.77

AISI321

U elbowed
(Fig. 6)

3

1780

174

1.15

DEFB1_8UAC

1800

1.65

AISI321

U elbowed
(Fig. 6)

3

2063

187

1.33

(Minimum temperature -40°C; Maximum temperature under regular use 150°C, Maximum temperature under peak 170°C)

DEFC range

Code

Watts

W/cm²

Dimensions (mm)

Weight

(Kg)

L

Tube dia­-meter «d»

D

DEFC1

120

0.3

990

6.4

13

0.37

DEFC1_5

180

0.3

1490

6.4

13

0.53

DEFC2

350

0.4

1990

6.4

13

0.68

DEFC2_2

400

0.4

2190

8

16

1.1

DEFC2_8

500

0.4

2840

8

16

1.4

(Minimum temperature -40°C ; Max temperature under regular use 150°C, Maximum temperature under peak 170°C)
